Food Waste Dryer

Daily Capacity : 33-247t/d

Final Moisture : 12-15%(adjustable)

Material : food waste, kitchen waste, etc

Email : dongding@zzddjt.com

lntroduction

 Food waste, also called the kitchen waste, is the generic terms of leftovers, dining table waste and kitchen waste. Its main ingredients are rice, flour, starch types, bone, meat, oil, skin, thorn, scales, etc. It richly contains nutrient substance (such as vitamins, starch, protein, fat, dietary fiber, fatty acid, sugar, salt, etc) and mineral substances (such as calcium, sodium, magnesium, potassium, and iron, etc). Food waste is suitable for being used as feed after being processed.

Based on economic value of the kitchen leftover, the kitchen leftover regeneration protein feed, regeneration oil, fermentation biological feed, organic fertilizer technology uses synthesis technique(physical, mechanical and biological, etc) to classify, extract, and process three kinds of products of different economic value in the same production line, including protein feed, grease, biological feed fermentation. They are new developed resource that improves economic value and use kitchen leftovers reasonably by new idea, new technology.

System

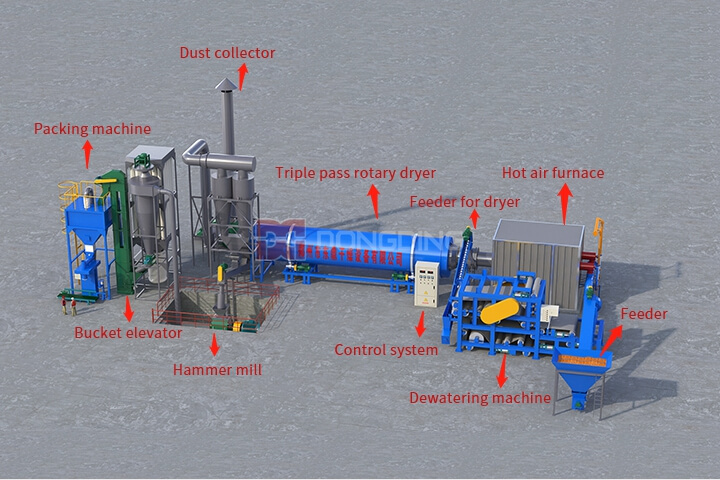

This system smashes material firstly, which is convenient for subsequent dehydration. After dehydration, it dries the dehydration materials, which decreases the drying heat consumption. In addition, during the high temperature drying process, it inactivates the harmful microbe inside the material. Setting up individual sterilization technology is not required, which simplifies the material processing process, saves energy required in individual sterilization. After drying and sterilization, it process material into pellet feed, which is convenient for feed product packing, transportation and use. Beside, during the processing process, we can add proper feed additive according to material characteristic and feed nutritional requirement, thus adjusting the feed satisfying nutritional requirement, and helpful to scientific feeding livestock.

This food waste dryer complete equipment makes the whole processing process carry on under a constant and sealing condition, which not only decreases the floor space, but also reduces construction investment, eliminates the possible peculiar smell and environmental pollution in production process, and lowers material and energy waste.


Advantage

1.Advanced technology: our company owns a number of national patent, international advanced technology.
2.Convenient and flexible: the transportation mode and processing technology can be customized based on users requirement(both sparing source process and centralized process are available);
3.Green and energy-saving: it can use solar energy and air heating pump heating system, which saves powder by 70% at least, and decreases the operating cost.
4.No environmental pollution: no pollution discharge, thus really reaching zero-pollution emissions.
5.Fully automatic, simple use.
6.Six big energy-saving and consumption reduction designs: optimized power design; linear control; comprehensive heat preservation, high heating efficiency, hot recycling use; unique energy-saving stirring system; anti-frosting design, etc.
7.Convenient installation and maintenance: we can offer the professional stuff to guide the installation, and after-sale stuff will check and maintain at regular time.

Technical Parameter



Device SpecificationDDJG1210DDJG1410DDJG1610DDJG2010/3DDJG2210/3DDJG2510/3DDJG2512/3DDJG2912/3
Daily Processing Capacity(t/d)33.640.858.9131.4145.0167.7204.0247.0
Daily Output(t/d)15.619.227.761.868.278.996.0116.2
Water Evaporation Capacity (t/h)0.750.901.302.903.203.704.505.45
Raw Material Water Content(%)60%-75%






Dried Material Water Content(%)12-15%(adjustable)






Drying Temperature (℃)350-550℃






Total Weight(kg)32405595100125145165
Plant Area(m2)15000170002150026500285003700004100045500
Device Specification5m*14m5m*14m6m*16m8m*16m8m*16m10m*16m10m*18m10m*20m


Except above models, we also can supply special model according to your requirements.


Our factory is located in Zhengzhou City, Henan Province, and there are 5000 square meters of standardized industrial workshop. The number of staffs is more than 500, together we are dedicated to the R & D and production, installation, after-sales service and technical consultation of the drying equipment.

We have strict quality control system and full set of service. Our products have been exported to over 120 countries such as Indonesia, the Philippines, Vietnam, Thailand, India, Kenya, Nigeria, Romania and many other countries and regions, totally 600+ drying cases all over the world. We are here to provide better products and service for you.

We have strict quality control system and full set of service. Our products have been exported to over 120 countries such as Indonesia, the Philippines, Vietnam, Thailand, India, Kenya, Nigeria, Romania and many other countries and regions, totally 600+ drying cases all over the world. We are here to provide better products and service for you.
